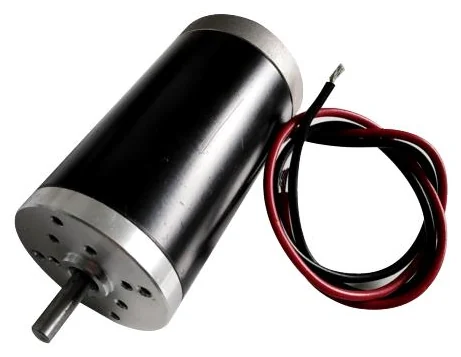

H42ZYT-74
Carbon-brush DC motor, 42 mm body
- Rated voltage
- 10.5–12 V
- No-load speed
- 4350–4720 rpm
- Torque at max. efficiency
- 30–45 mN·m
- Output power
- 12–18.95 W
Typical applications
- Household appliances
- Medical equipment
- Intelligent control
Performance
| Version | H42ZYT-74 | H42ZYT-90 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 6.0–20.0 | 9.0–15.0 |
| Rated voltage (V) | 12 | 10.5 |
| No load | ||
| Speed (rpm) | 4350 | 4720 |
| Current (A) | 0.34 | 0.5 |
| At maximum efficiency | ||
| Speed (rpm) | 3602 | 3969 |
| Current (A) | 1.64 | 2.64 |
| Torque (mN·m) | 30 | 45 |
| Output power (W) | 12 | 18.95 |
| Stall | ||
| Torque (mN·m) | 185 | 290 |
| Current (A) | 7.88 | 14 |

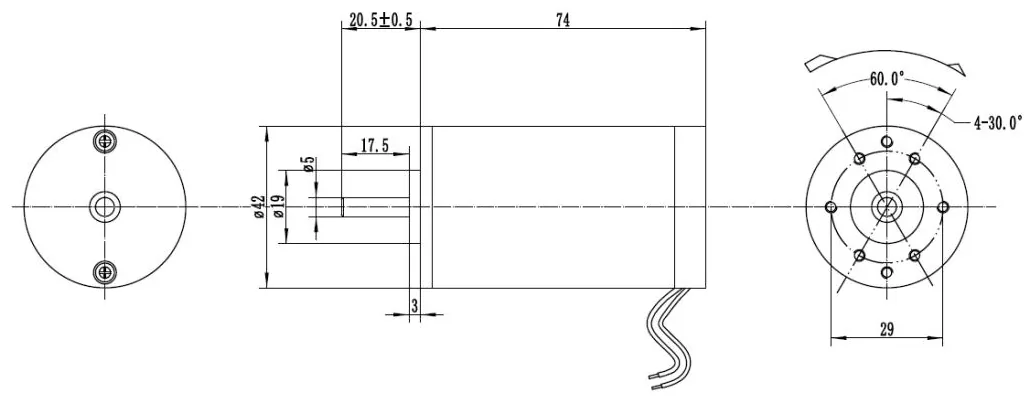

Dimensions

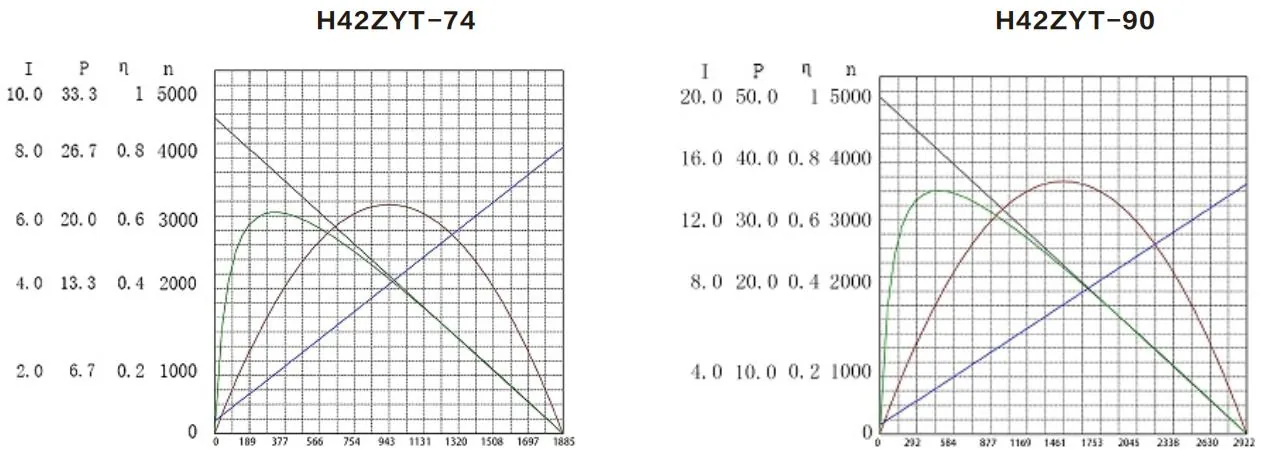

Performance curves
