HRS-395SH
Carbon-brush DC motor, 395 frame
- Rated voltage
- 24 V
- No-load speed
- 7450–10480 rpm
- Torque at max. efficiency
- 9.5–10 mN·m
- Output power
- 5.99–9.84 W
Typical applications
- Household appliances
- Robot vacuums
- Medical devices
Performance
| Version | HRS-395SH-1790 | HRS-395SH-15140 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 12.0–30.0 |
| Rated voltage (V) | 24 | 24 |
| No load | ||
| Speed (rpm) | 10480 | 7450 |
| Current (A) | 0.11 | 0.055 |
| At maximum efficiency | ||
| Speed (rpm) | 8792 | 6410 |
| Current (A) | 0.57 | 0.34 |
| Torque (mN·m) | 10 | 9.5 |
| Output power (W) | 9.84 | 5.99 |
| Stall | ||
| Torque (mN·m) | 67.2 | 64.8 |
| Current (A) | 2.98 | 2.09 |

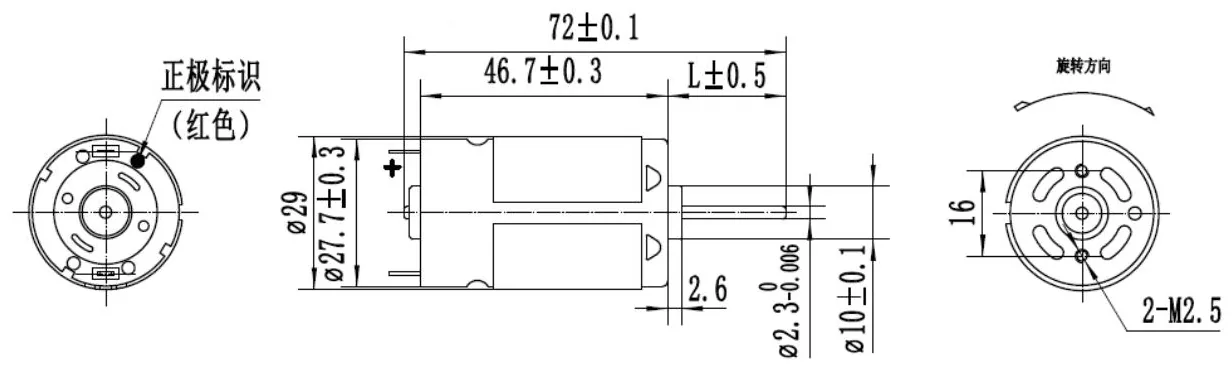

Dimensions

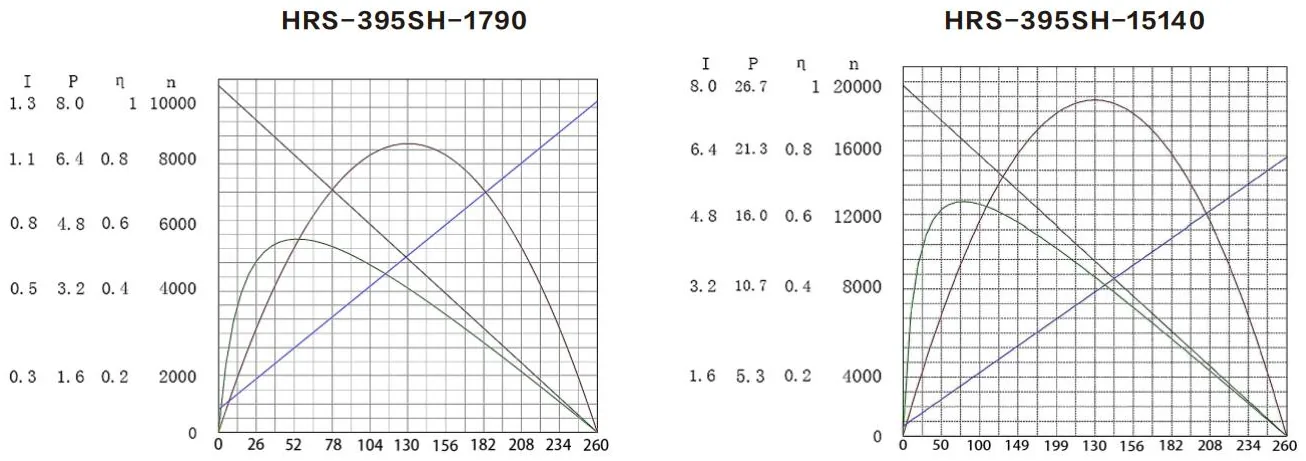

Performance curves
