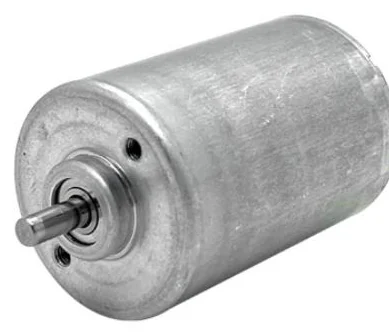

HS42BL
Brushless DC motor, 42 mm body
- Rated voltage
- 12–24 V
- No-load speed
- 3000–5500 rpm
- Torque at max. efficiency
- 27.6–52.8 mN·m
- Output power
- 5.93–22.1 W
Typical applications
- Household appliances
- Medical devices
- Smart curtains
Performance
| Version | HS42BL-2455 | HS42BL-1230 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 15–24.0 | 12–18.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 5500 | 3000 |
| Current (A) | 0.2 | 0.15 |
| At maximum efficiency | ||
| Speed (rpm) | 4000 | 2050 |
| Current (A) | 1.35 | 0.8 |
| Torque (mN·m) | 52.8 | 27.6 |
| Output power (W) | 22.1† | 5.93† |
| Stall | ||
| Torque (mN·m) | 208 | 105 |
| Current (A) | 5 | 2.6 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

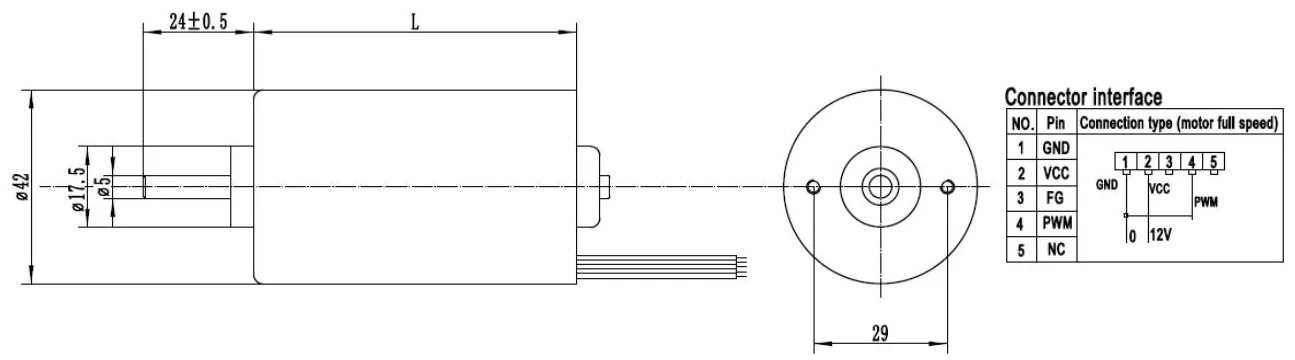

Dimensions

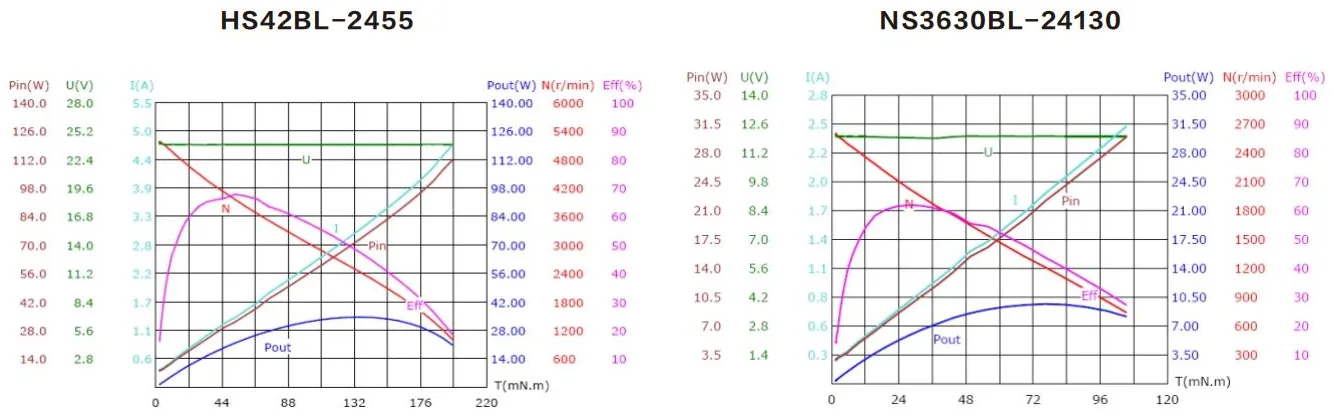

Performance curves

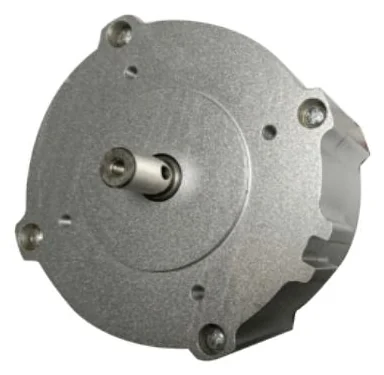

Other brushless DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS42BL.
