HRK-511SA
Carbon-brush DC motor, 511 frame
- Rated voltage
- 12–24 V
- No-load speed
- 4087–5165 rpm
- Torque at max. efficiency
- 11.23–11.5 mN·m
- Output power
- 3.91–5.02 W
Typical applications
- Household appliances
- Office automation equipment
- Gearboxes
Performance
| Version | HRK-511SA-26150 | HRK-511SA-18300 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 6.0–15.0 | 12.0–30.0 |
| Rated voltage (V) | 12 | 24 |
| No load | ||
| Speed (rpm) | 5165 | 4087 |
| Current (A) | 0.114 | 0.048 |
| At maximum efficiency | ||
| Speed (rpm) | 4368 | 3428 |
| Current (A) | 0.625 | 0.25 |
| Torque (mN·m) | 11.23 | 11.5 |
| Output power (W) | 5.02 | 3.91 |
| Stall | ||
| Torque (mN·m) | 72.3 | 71.4 |
| Current (A) | 3.4 | 1.3 |

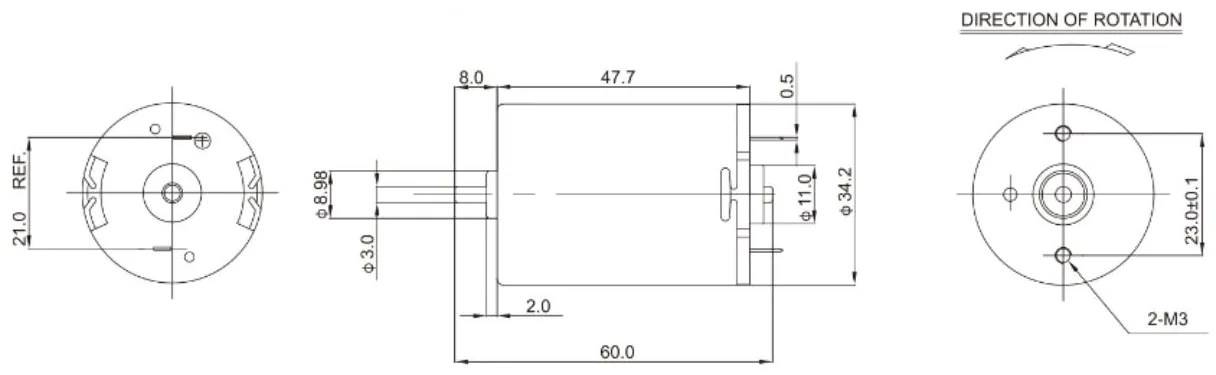

Dimensions

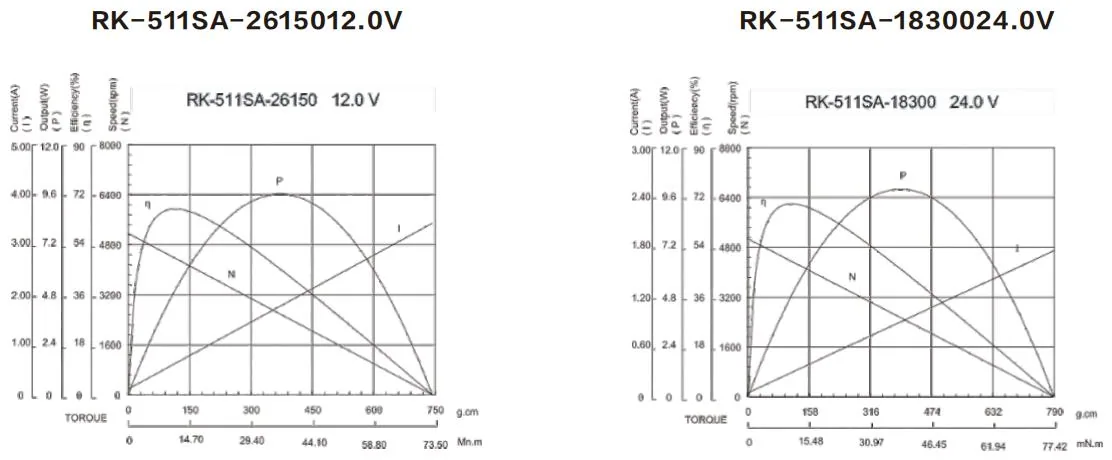

Performance curves

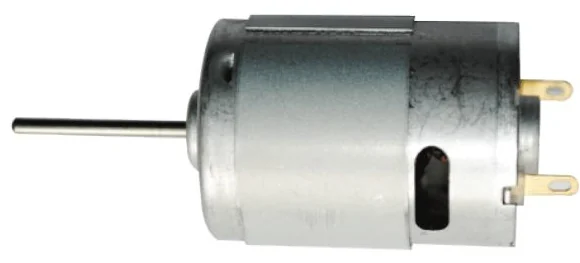

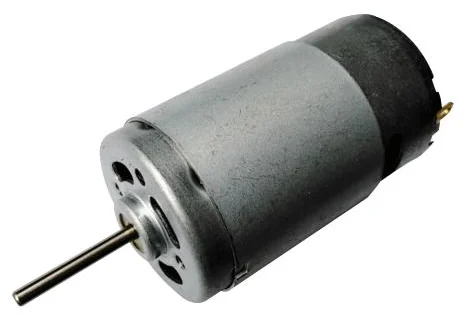

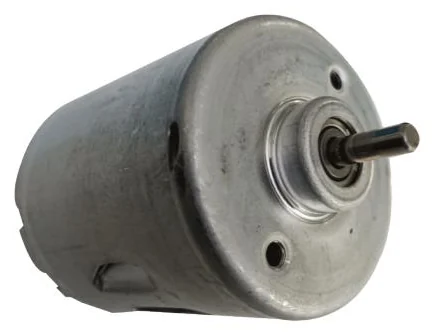

Other brushed DC motors
