HRS3176-497SH
Carbon-brush DC motor, 31 mm body
- Rated voltage
- 12–24 V
- No-load speed
- 5600–8500 rpm
- Torque at max. efficiency
- 24.2–25 mN·m
- Output power
- 12.73–20.14 W
Typical applications
- Printers
- Automotive products
- Office automation equipment
Performance
| Version | HRS-3176SH-2456 | HRS-3176SH-4220 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 5600 | 8500 |
| Current (A) | 0.085 | 0.21 |
| At maximum efficiency | ||
| Speed (rpm) | 5000 | 7740 |
| Current (A) | 0.72 | 2.15 |
| Torque (mN·m) | 24.2 | 25 |
| Output power (W) | 12.73 | 20.14 |
| Stall | ||
| Torque (mN·m) | 230 | 280 |
| Current (A) | 6.04 | 21.9 |

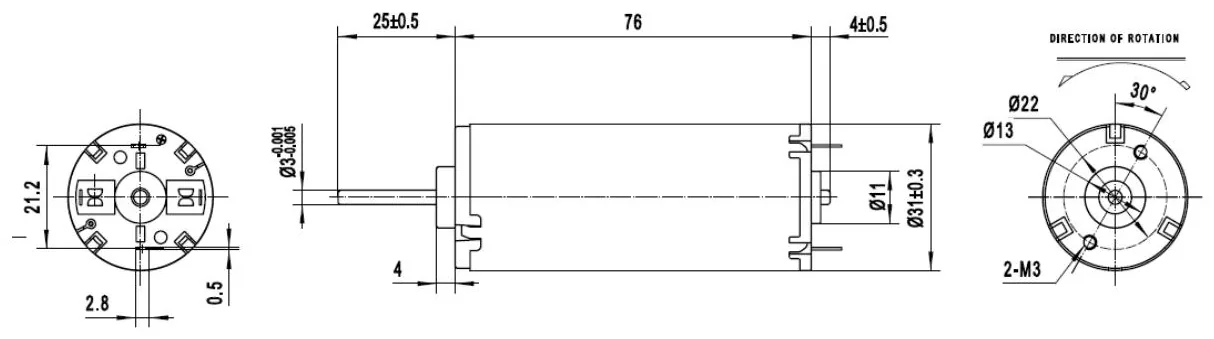

Dimensions

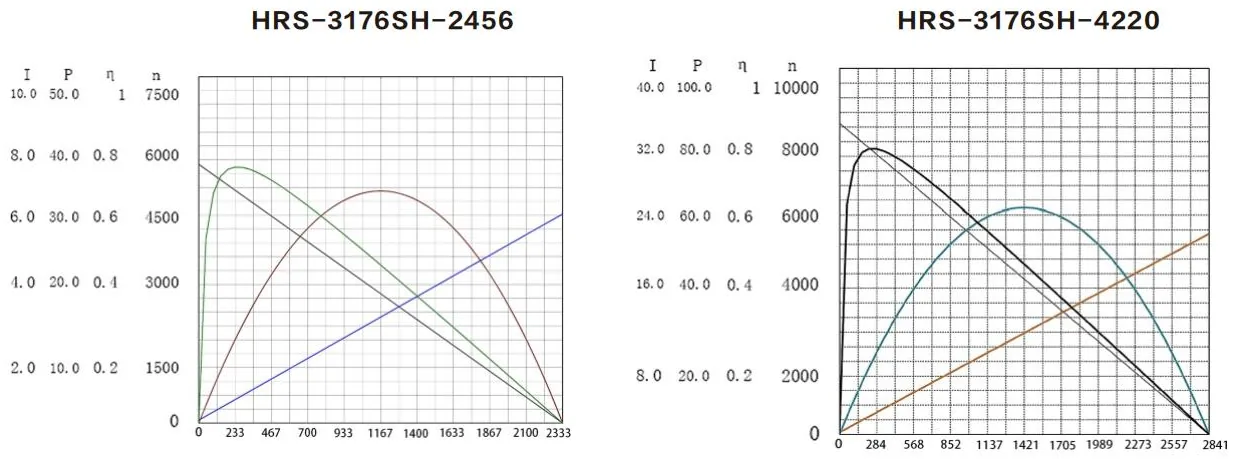

Performance curves
