- HS22JSX-130
HS22JSX-130

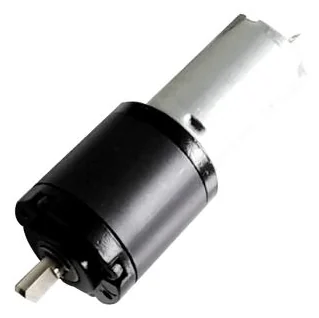

Planetary gear motor, 22 mm gearbox, 130 motor
- Rated voltage
- 6–9 V
- No-load speed
- 24–112 rpm
- Torque at max. efficiency
- 38–350 mN·m
- Output power
- 0.35–0.73 W
Typical applications
- Automatic valves
- Remote-control locks
- Medical devices
Performance
| Version | HS22JSX-130-304K | HS22JSX-130-43K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 4.5–12.0 | 4.5–12.0 |
| Rated voltage (V) | 9 | 6 |
| No load | ||
| Speed (rpm) | 24 | 112 |
| Current (A) | 0.04 | 0.035 |
| At maximum efficiency | ||
| Speed (rpm) | 20 | 89 |
| Current (A) | 0.16 | 0.13 |
| Torque (mN·m) | 350 | 38 |
| Output power (W) | 0.73 | 0.35 |
| Stall | ||
| Torque (mN·m) | 1780 | 178 |
| Current (A) | 0.67 | 0.5 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 15.9 mm | 1:3.5 to 1:4.75 |
| 19.4 mm | 1:12 to 1:29 |
| 22.9 mm | 1:43 to 1:171 |
| 26.4 mm | 1:196 to 1:1026 |
- Other gearbox lengths and reduction ratios can be developed to order.

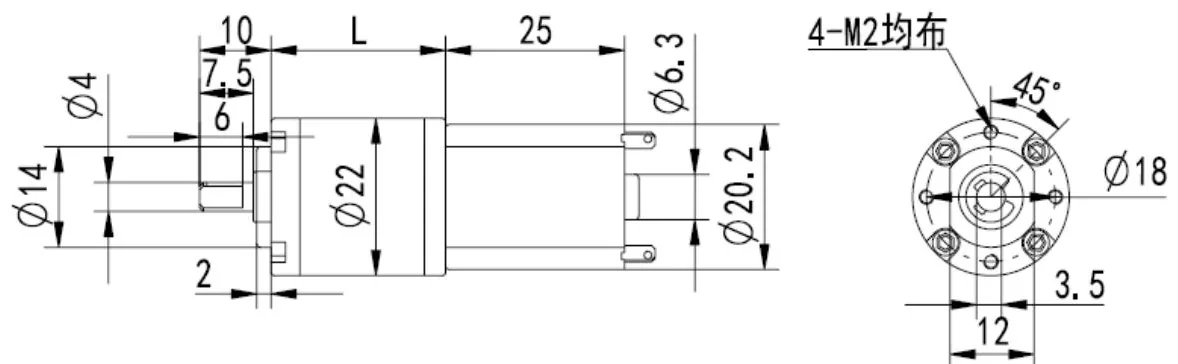

Dimensions

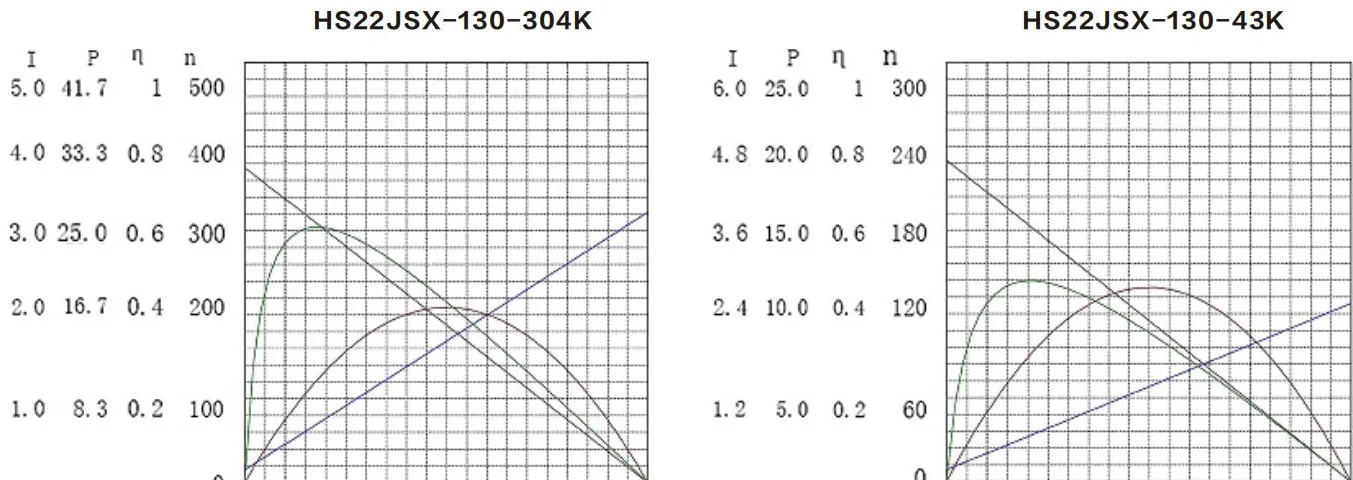

Performance curves
Other gear motors
Planetary gear motor, 24 mm gearbox, 370 motorHS24JSX-370
12 V · no-load 46–148 rpm
Planetary gear motor, 28 mm gearbox, 365 or 360 motorHS28JSX-365/360
12–24 V · no-load 36–125 rpm
Planetary gear motor, 36 mm gearbox, 555 or 545 motorHS36JSX-555/545
12–24 V · no-load 60–235 rpm
Planetary gear motor, 42 mm gearbox, 775 motorHS42JSX-775
24 V · no-load 230–375 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS22JSX-130.
