- HS36JSX-555/545

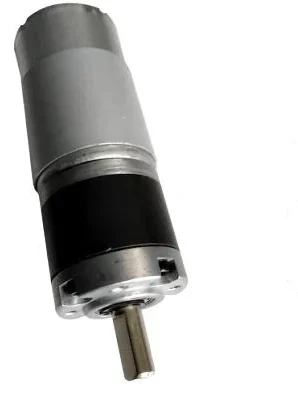

HS36JSX-555/545
Planetary gear motor, 36 mm gearbox, 555 or 545 motor
- Rated voltage
- 12–24 V
- No-load speed
- 60–235 rpm
- Torque at max. efficiency
- 339–598 mN·m
- Output power
- 3.07–8.5 W
Typical applications
- Automatic valves
- Smart home
- Medical devices
Performance
| Version | HS36JSX-555-14K | HS36JSX-555-50K | HS36JSX-545-27K |
|---|---|---|---|
| Voltage | |||
| Operating range (V) | 9.0–15.0 | 15.0–30.0 | 9.0–15.0 |
| Rated voltage (V) | 12 | 24 | 12 |
| No load | |||
| Speed (rpm) | 235 | 60 | 155 |
| Current (A) | 0.16 | 0.08 | 0.16 |
| At maximum efficiency | |||
| Speed (rpm) | 205 | 49 | 124 |
| Current (A) | 1.07 | 0.36 | 0.63 |
| Torque (mN·m) | 398 | 598 | 339 |
| Output power (W) | 8.5 | 3.07 | 4.36 |
| Stall | |||
| Torque (mN·m) | 3000 | 3350 | 1680 |
| Current (A) | 7.2 | 1.66 | 2.51 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 28.5 mm | 1:3.7 to 1:5.18 |
| 34.7 mm | 1:14 to 1:27 |
| 40.9 mm | 1:50 to 1:139 |
| 47.1 mm | 1:189 to 1:721 |
- Other gearbox lengths and reduction ratios can be developed to order.

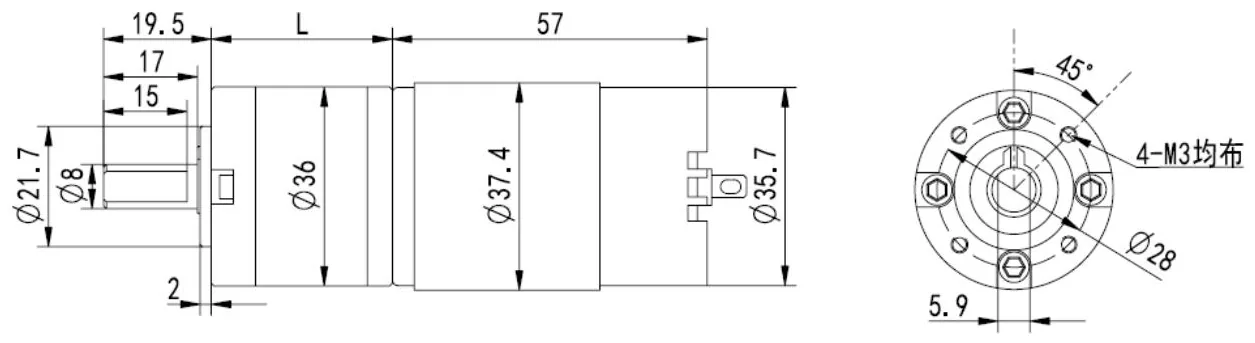

Dimensions

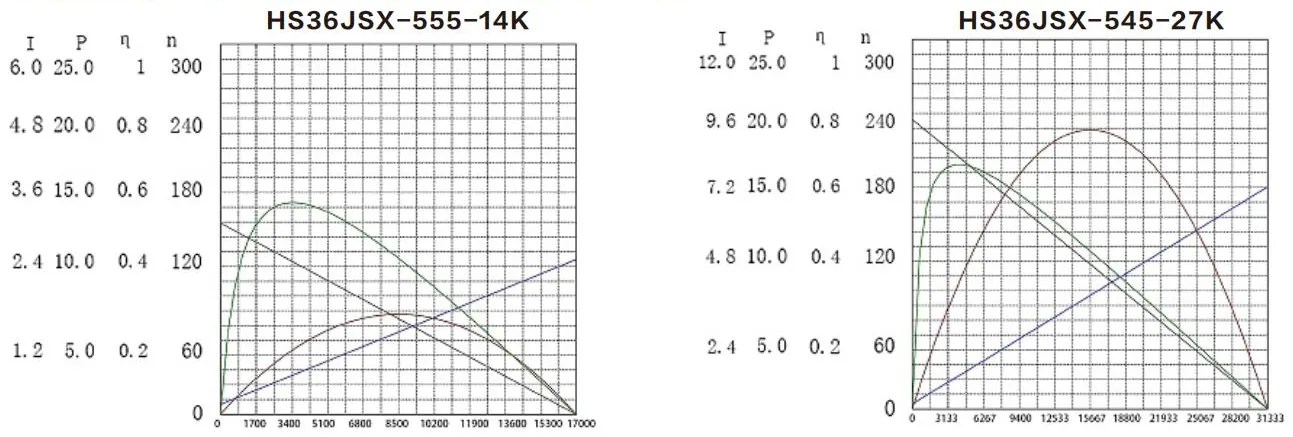

Performance curves
Other gear motors
Planetary gear motor, 42 mm gearbox, 775 motorHS42JSX-775
24 V · no-load 230–375 rpm
Spur gear motor, 20 mm gearbox, 180 motorHS20ZJSX-180
2.4–12 V · no-load 41–83 rpm
Spur gear motor, 25 mm gearbox, 370 motorHS25ZJSX-370
3–12 V · no-load 14–54 rpm
Spur gear motor, 37 mm gearbox, 510 motorHS37ZJSX-510S
12–24 V · no-load 20–92 rpm
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS36JSX-555/545.
