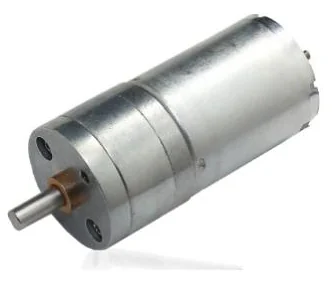

HS25ZJSX-370
Spur gear motor, 25 mm gearbox, 370 motor
- Rated voltage
- 3–12 V
- No-load speed
- 14–54 rpm
- Torque at max. efficiency
- 167–329 mN·m
- Output power
- 0.39–0.81 W
Typical applications
- Precision instruments
- Automation equipment
- Automotive
Performance
| Version | HS25ZJSX-370-83K | HS25ZJSX-370-215K |
|---|---|---|
| Voltage | ||
| Operating range (V) | 9.0–15.0 | 2.0–4.5 |
| Rated voltage (V) | 12 | 3 |
| No load | ||
| Speed (rpm) | 54 | 14 |
| Current (A) | 0.016 | 0.05 |
| At maximum efficiency | ||
| Speed (rpm) | 47 | 12 |
| Current (A) | 0.1 | 0.21 |
| Torque (mN·m) | 167 | 329 |
| Output power (W) | 0.81 | 0.39 |
| Stall | ||
| Torque (mN·m) | 1390 | 1890 |
| Current (A) | 0.66 | 1.01 |
- Speeds and torques are at the gearbox output shaft.
Gearbox lengths and reduction ratios
| Gearbox length (L) | Reduction ratio |
|---|---|
| 17.5 mm | 1:5.7 |
| 21.5 mm | 1:12.5 |
| 24 mm | 1:32 to 1:83 |
| 27 mm | 1:215 |
- Other gearbox lengths and reduction ratios can be developed to order.

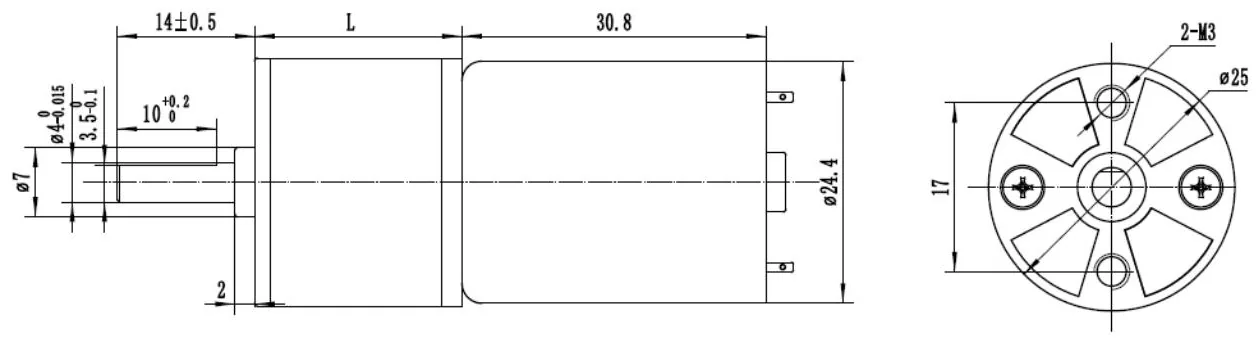

Dimensions

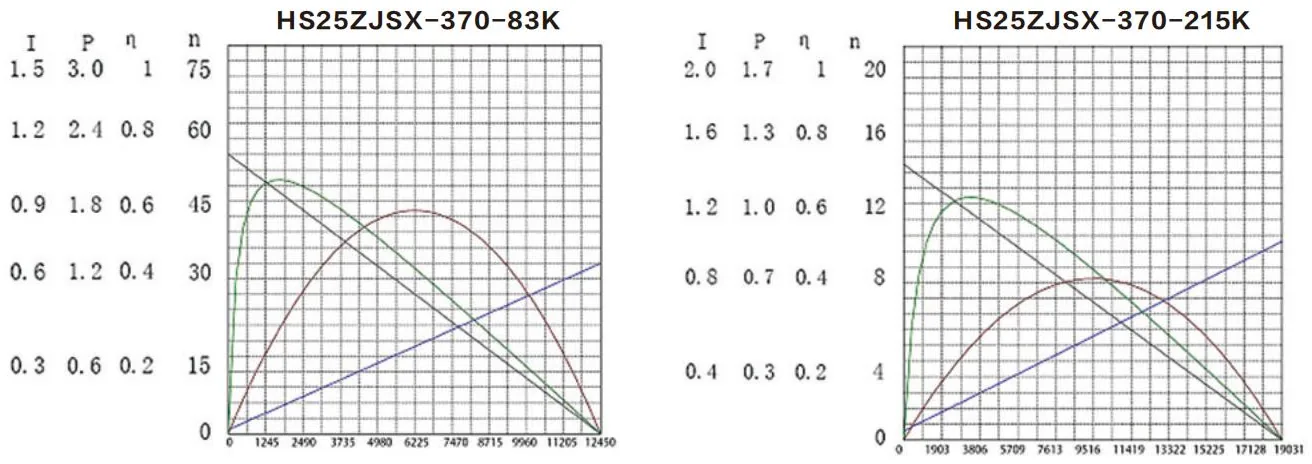

Performance curves
