HS57 outer-rotor generator
Outer-rotor brushless generator, 67 mm
- Gear ratio in tests
- 1:26
- No-load voltage
- 21–117 V at 520–2600 rpm
Typical applications
- Industrial equipment
- Fitness equipment
Theoretical voltage after bridge rectification
| Generator speed (rpm) | 520 | 780 | 1040 | 1300 | 1560 | 1820 | 2080 | 2340 | 2600 |
|---|---|---|---|---|---|---|---|---|---|
| Maximum no-load voltage (V) | 21 | 33.5 | 45 | 58 | 73 | 80.4 | 92 | 104 | 117 |
- Measured through a 1:26 gear ratio.

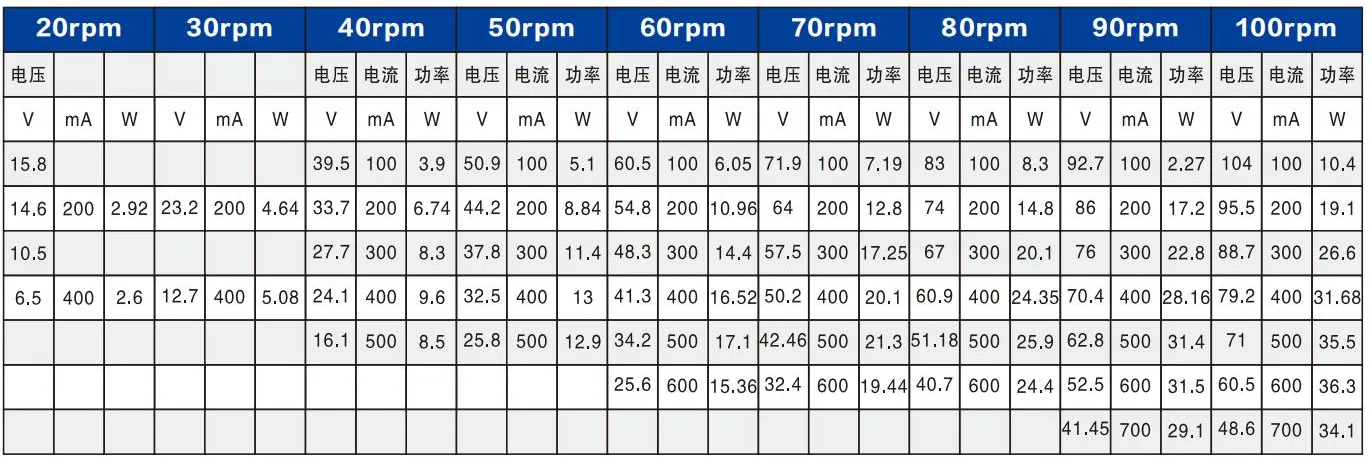

Voltage and power under load
Dimensions
Other brushless DC motors
Need a different voltage, speed or gearbox?
Send your operating point and we will propose a winding or gearbox based on the HS57 outer-rotor generator.
