HRK-510SA
Carbon-brush DC motor, 510 frame
- Rated voltage
- 12 V
- No-load speed
- 5180–7550 rpm
- Torque at max. efficiency
- 7.7–10 mN·m
- Output power
- 3.3–6.78 W
Typical applications
- Industrial equipment
- Gearboxes
Performance
| Version | HRK-510SA-17285 | HRK-510SA-22200 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 6.0–15.0 | 6.0–15.0 |
| Rated voltage (V) | 12 | 12 |
| No load | ||
| Speed (rpm) | 5180 | 7550 |
| Current (A) | 0.095 | 0.16 |
| At maximum efficiency | ||
| Speed (rpm) | 4142 | 6291 |
| Current (A) | 0.38 | 0.8 |
| Torque (mN·m) | 7.7 | 10 |
| Output power (W) | 3.3 | 6.78 |
| Stall | ||
| Torque (mN·m) | 38.8 | 62.8 |
| Current (A) | 1.6 | 4 |

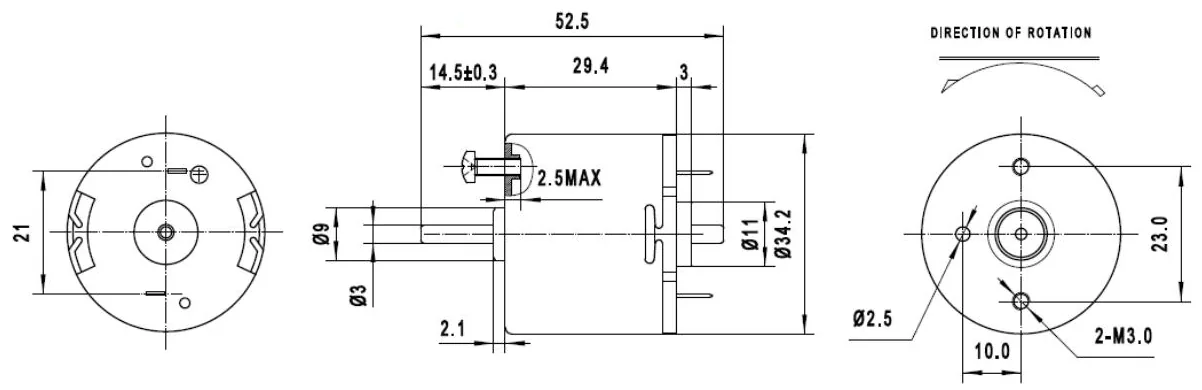

Dimensions

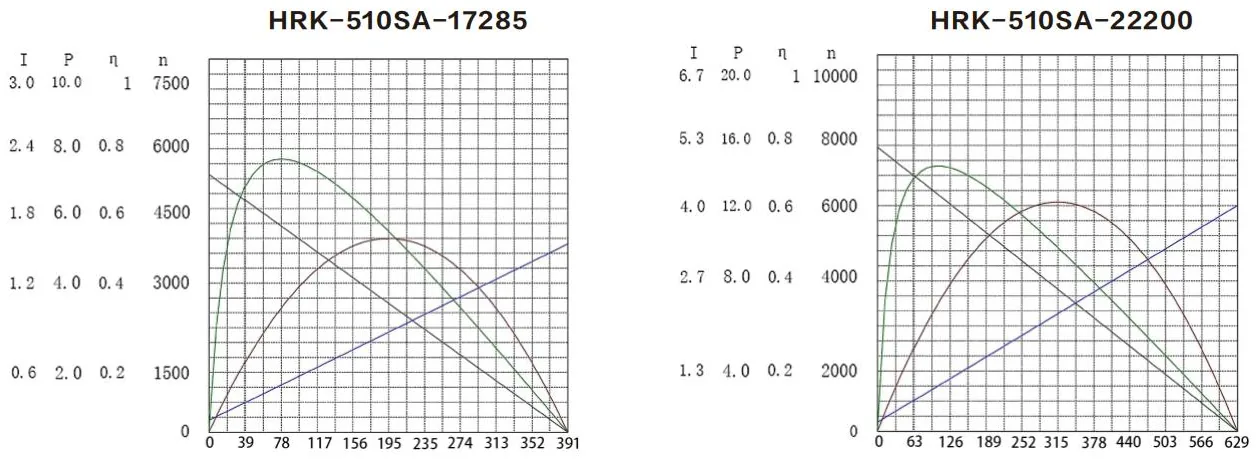

Performance curves
