HRS-3151SH
Carbon-brush DC motor, 31 mm body
- Rated voltage
- 12–24 V
- No-load speed
- 3900 rpm
- Torque at max. efficiency
- 10–13.02 mN·m
- Output power
- 2.5–3.5 W
Typical applications
- Printers
- Automotive products
- Office automation equipment
Performance
| Version | HRS-3151SH-14130 | HRS-3151SH-2170 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 12.0–30.0 | 6.0–15.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 3900 | 3900 |
| Current (A) | 0.06 | 0.08 |
| At maximum efficiency | ||
| Speed (rpm) | 2700 | 2800 |
| Current (A) | 0.7 | 0.35 |
| Torque (mN·m) | 13.02 | 10 |
| Output power (W) | 3.5 | 2.5 |
| Stall | ||
| Torque (mN·m) | 55 | 56 |
| Current (A) | 1.1 | 1.6 |

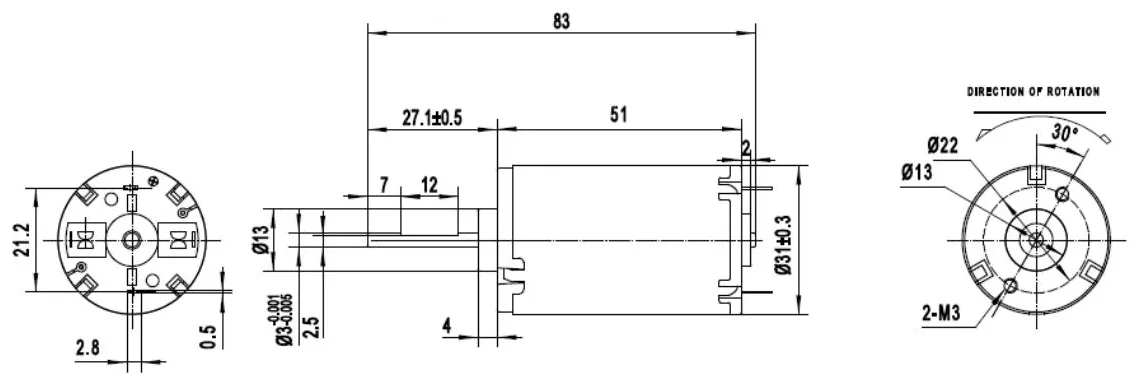

Dimensions

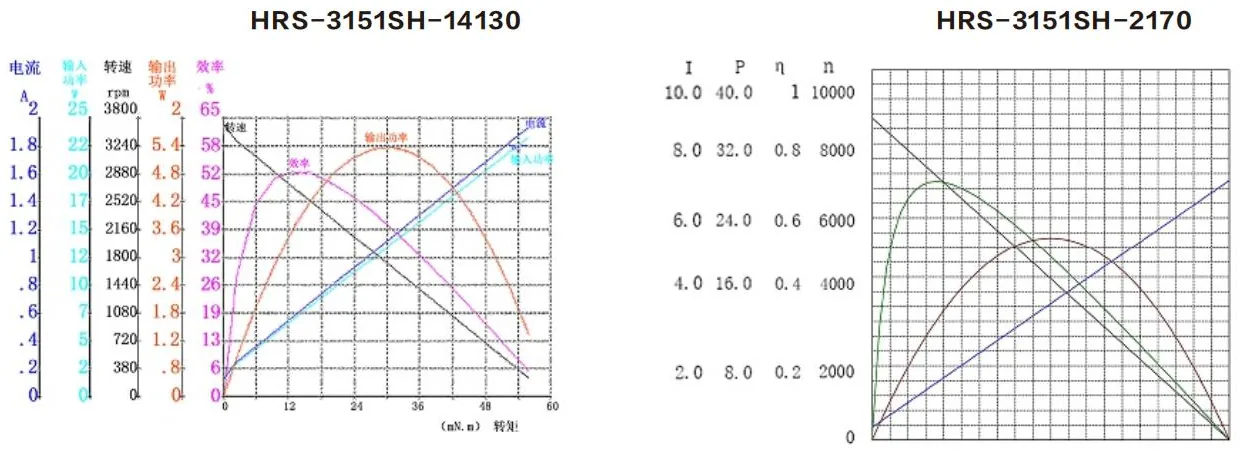

Performance curves
