HS57BL
Brushless DC motor, 57 mm body
- Rated voltage
- 24 V
- No-load speed
- 4600 rpm
- Torque at max. efficiency
- 86.7 mN·m
- Output power
- 34.9 W
Typical applications
- Household appliances
- Medical devices
- Fitness equipment
Performance
| Version | HS57BL-5540 |
|---|---|
| Voltage | |
| Operating range (V) | 15–24.0 |
| Rated voltage (V) | 24 |
| No load | |
| Speed (rpm) | 4600 |
| Current (A) | 0.31 |
| At maximum efficiency | |
| Speed (rpm) | 3840 |
| Current (A) | 1.85 |
| Torque (mN·m) | 86.7 |
| Output power (W) | 34.9† |
| Stall | |
| Torque (mN·m) | – |
| Current (A) | – |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

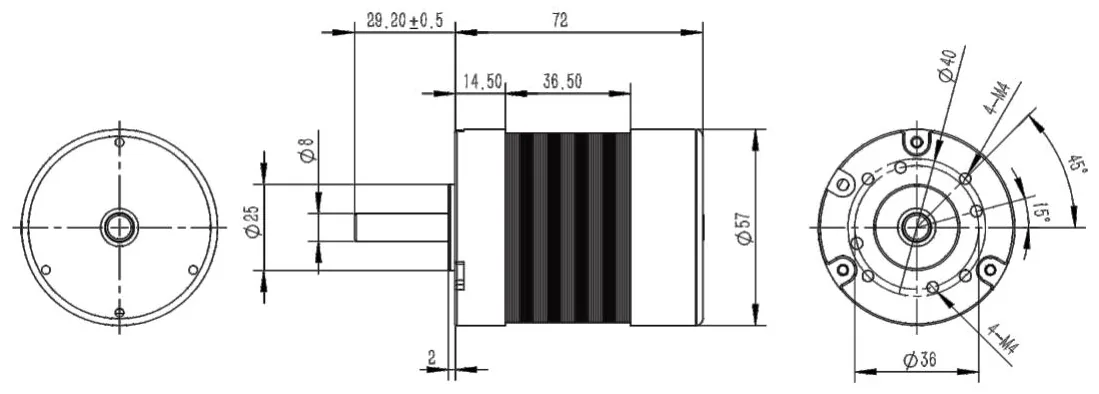

Dimensions

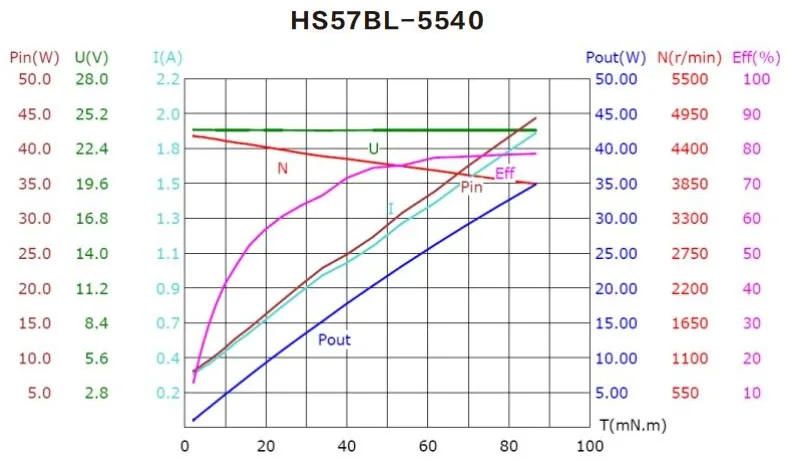

Performance curves
