HS2838BL
Brushless DC motor, 27.7 mm body
- Rated voltage
- 12 V
- No-load speed
- 12000 rpm
- Torque at max. efficiency
- 11.4 mN·m
- Output power
- 11.7 W
Typical applications
- Household appliances
- Medical equipment
- Intelligent control
Performance
| Version | HS2838BL-3125 |
|---|---|
| Voltage | |
| Operating range (V) | 6.0–15.0 |
| Rated voltage (V) | 12 |
| No load | |
| Speed (rpm) | 12000 |
| Current (A) | 0.35 |
| At maximum efficiency | |
| Speed (rpm) | 9800 |
| Current (A) | 1.3 |
| Torque (mN·m) | 11.4 |
| Output power (W) | 11.7† |
| Stall | |
| Torque (mN·m) | 50 |
| Current (A) | 5 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

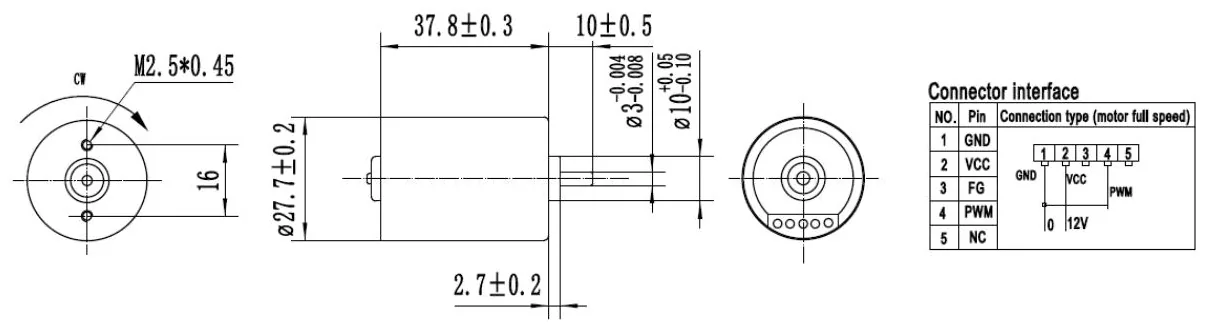

Dimensions

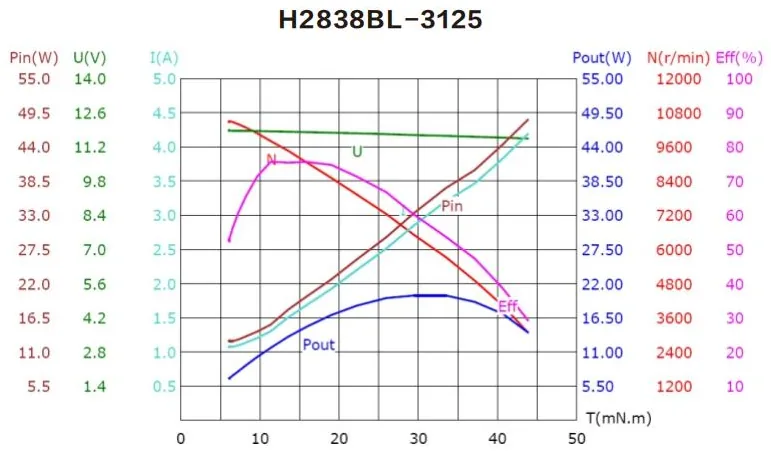

Performance curves
