HS73BL
Brushless DC motor, 70 mm body
- Rated voltage
- 24 V
- No-load speed
- 12000 rpm
- Torque at max. efficiency
- 54 mN·m
- Output power
- 62.5 W
Typical applications
- Household appliances
- Portable water pumps
Performance
| Version | HS70BL-2-6913 |
|---|---|
| Voltage | |
| Operating range (V) | 15–24.0 |
| Rated voltage (V) | 24 |
| No load | |
| Speed (rpm) | 12000 |
| Current (A) | 0.85 |
| At maximum efficiency | |
| Speed (rpm) | 11056 |
| Current (A) | 3.7 |
| Torque (mN·m) | 54 |
| Output power (W) | 62.5† |
| Stall | |
| Torque (mN·m) | – |
| Current (A) | – |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

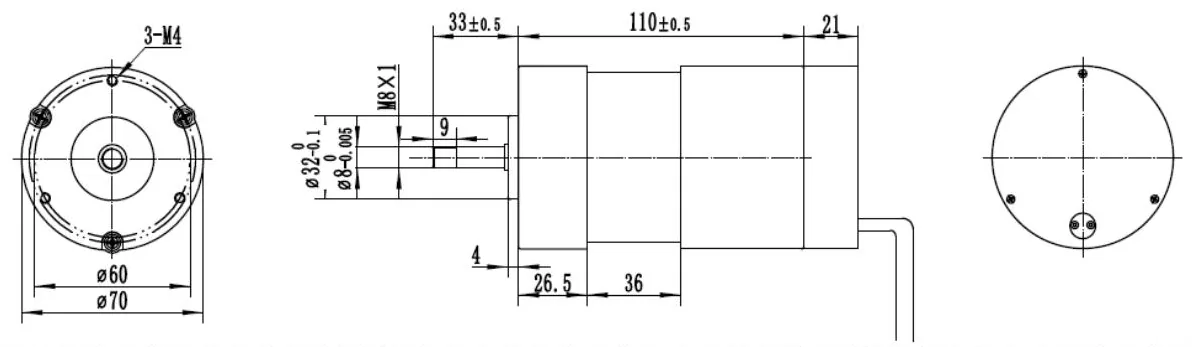

Dimensions

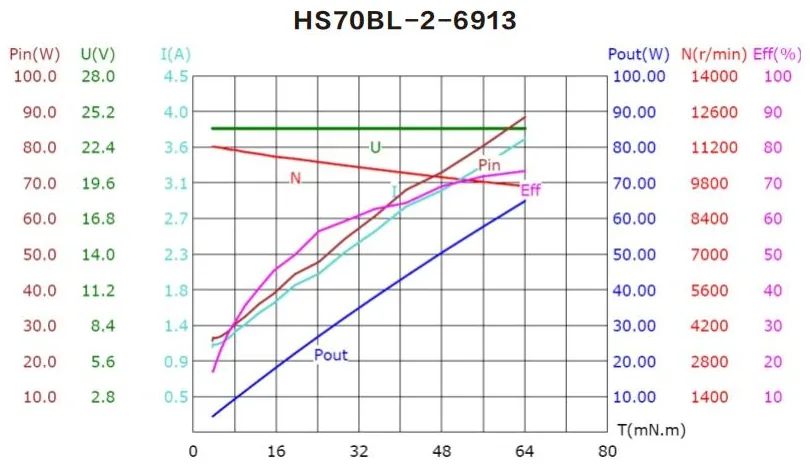

Performance curves
