HS3630BL
Brushless DC motor, 36 mm body
- Rated voltage
- 12–24 V
- No-load speed
- 3000–6800 rpm
- Torque at max. efficiency
- 9.5–13.1 mN·m
- Output power
- 2.29–7.27 W
Typical applications
- Household appliances
- Medical devices
- Service robots
Performance
| Version | HS3630BL-23150 | HS3630BL-24130 |
|---|---|---|
| Voltage | ||
| Operating range (V) | 15–24.0 | 12–18.0 |
| Rated voltage (V) | 24 | 12 |
| No load | ||
| Speed (rpm) | 6800 | 3000 |
| Current (A) | 0.1 | 0.08 |
| At maximum efficiency | ||
| Speed (rpm) | 5300 | 2300 |
| Current (A) | 0.438 | 0.383 |
| Torque (mN·m) | 13.1 | 9.5 |
| Output power (W) | 7.27† | 2.29† |
| Stall | ||
| Torque (mN·m) | 65 | 35.5 |
| Current (A) | 2.09 | 1.26 |
- † Calculated from torque and speed. The catalogue figure for this version is the input power.

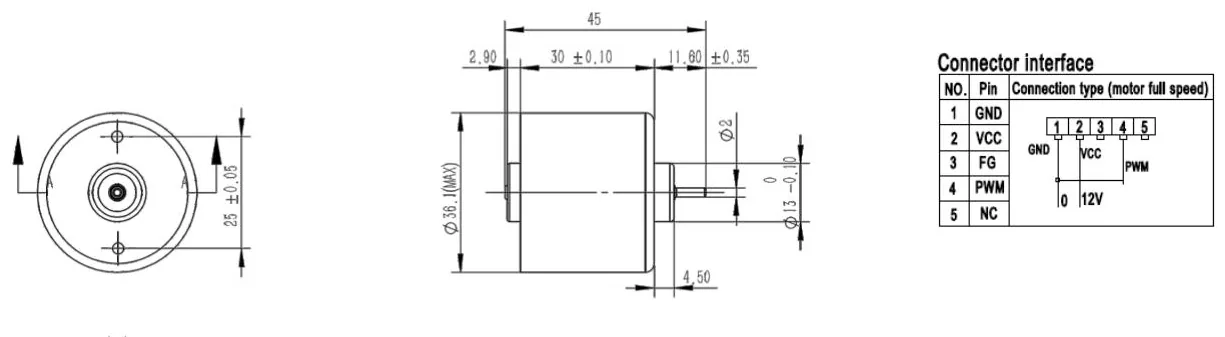

Dimensions

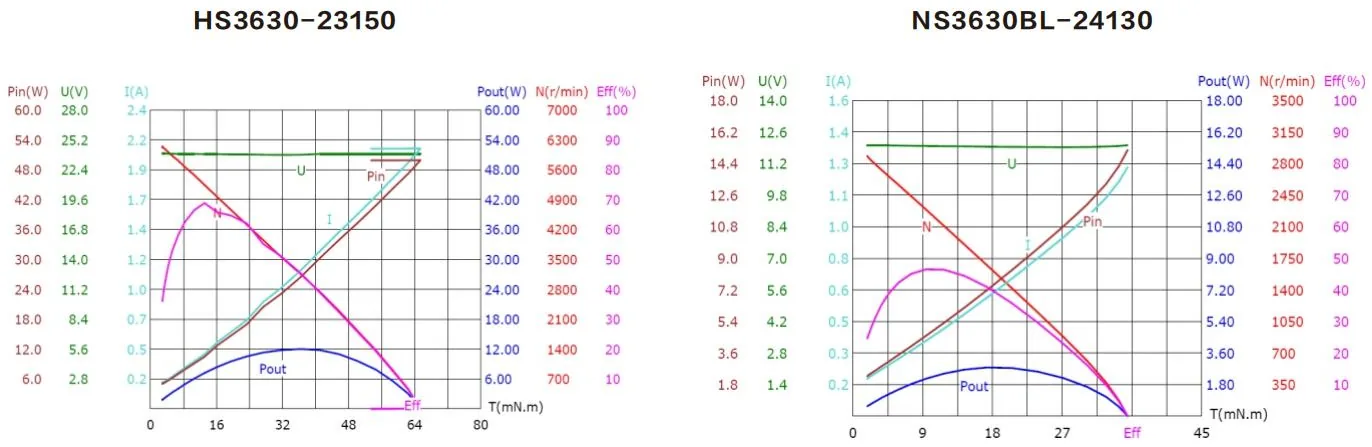

Performance curves
